Wireless Rear View Camera Set 300M | Truck | Camper | Boat | Tractor

A complete wireless camera set for Trucks, Campers, Boats, Traktors or for example Agriculture. You can use it wherever it is difficult to pull a long cable.

Because this set is wireless with a range of up to 300* meters, no cables need to be run through the entire vehicle. All you need is a power connection which can be tapped at several points in the vehicle, such as the lighting. Both the 7 ”display screen and the reversing camera both operate on 12 / 24V DC.

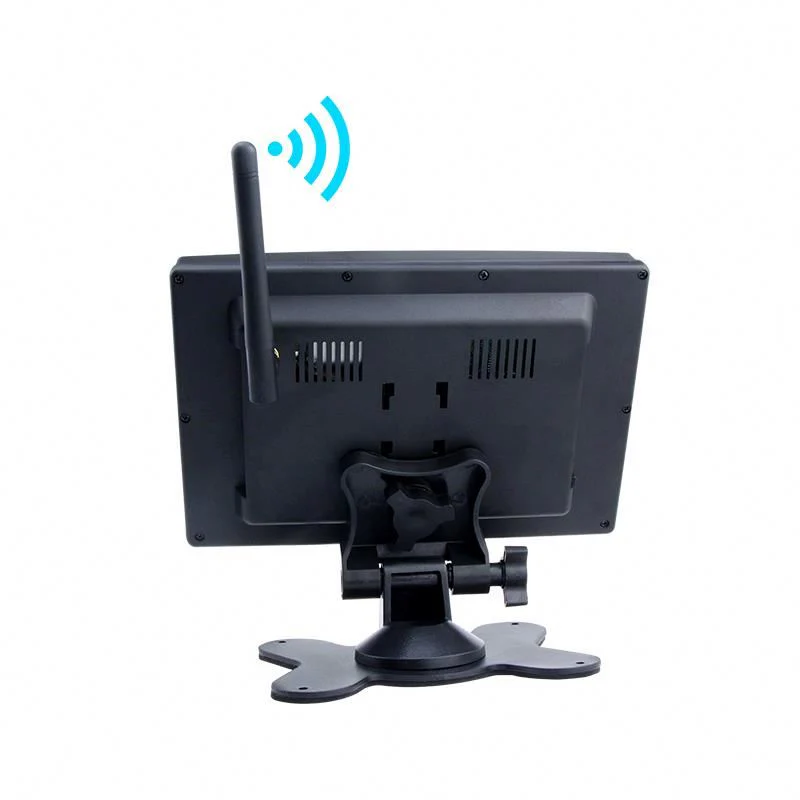

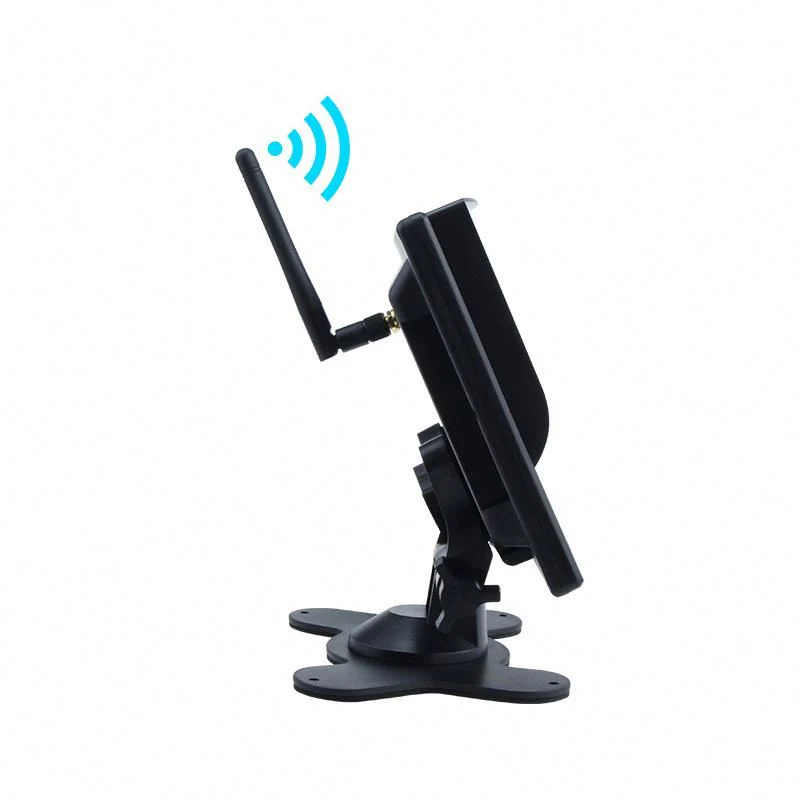

Monitor
▪ Frequency: 2400-2483.5 Mhz (2.4GHz)
▪ Default frequency: 2370 Mhz
▪ Wireless range: 300* meters
▪ Compression format: MPEG 4 video
▪ Transmission frequency 18 dBm
▪ Transmission speed: 12 Mbps
▪ FHSS: Frequency Hopping Spread Spectrum
▪ Hop speed 1200 / S

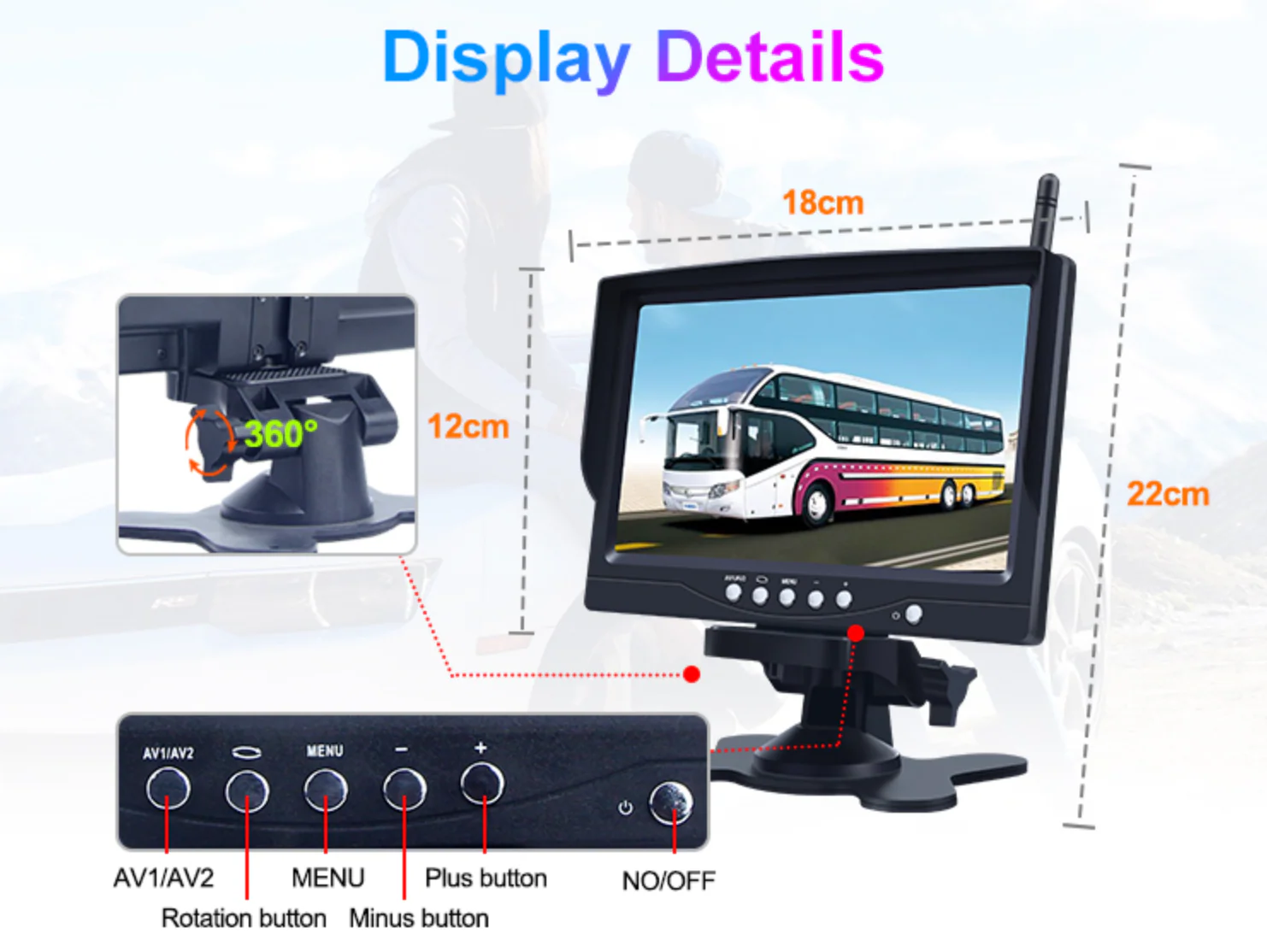

▪ Screen size: 7 inch 16: 9
▪ Resolution: 800x480 RGB
▪ TV system: PAL / NTSC
▪ Voltage: 12V / 24V DC
▪ Power: ≤8.64W
▪ Operating temperature: -10 ° C to +65 ° C

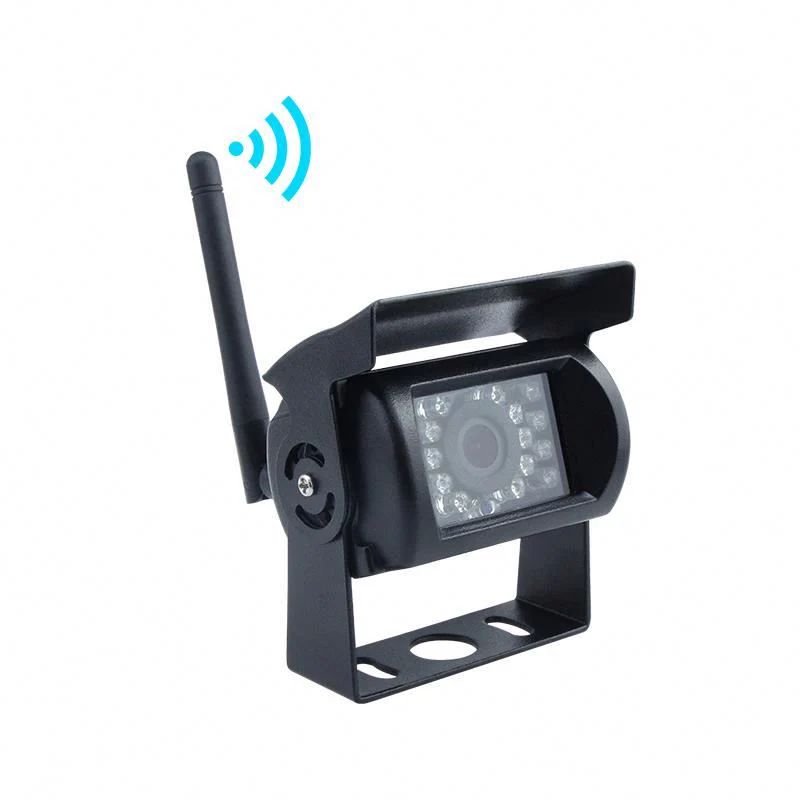

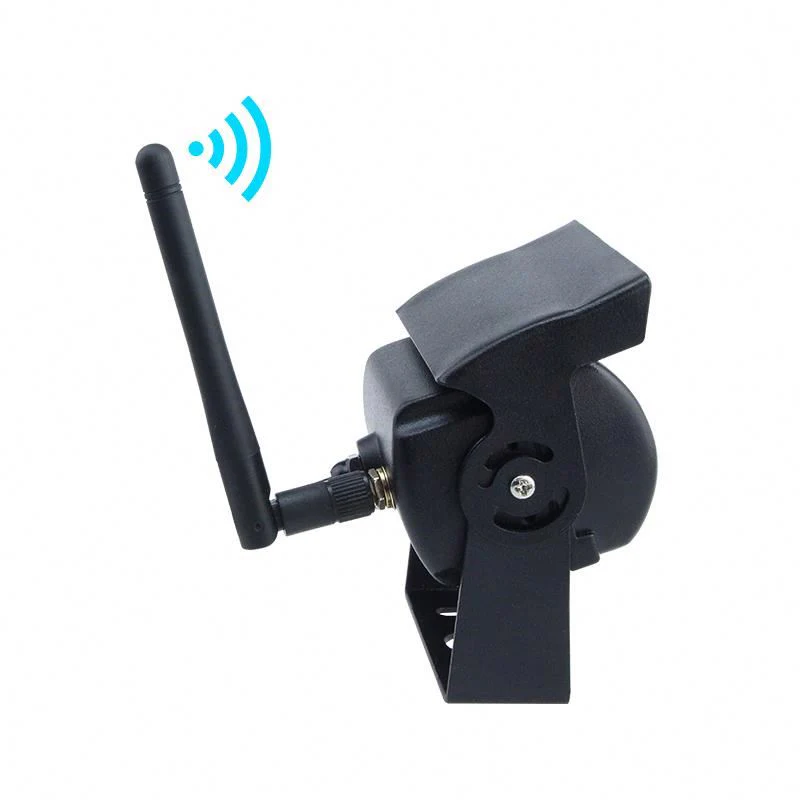

Wireless Camera
▪ Standard NTSC: 510 x 492 pixels
▪ Standard PAL: 5120x 582 pixels
▪ Resolution: 420 pixels
▪ Lens: 2.5mm
▪ Minimum illumination: 0LUX (LED on)
▪ Infrared LED: 18 pcs
▪ Night vision distance: 15 meters
▪ Waterproof: IP67

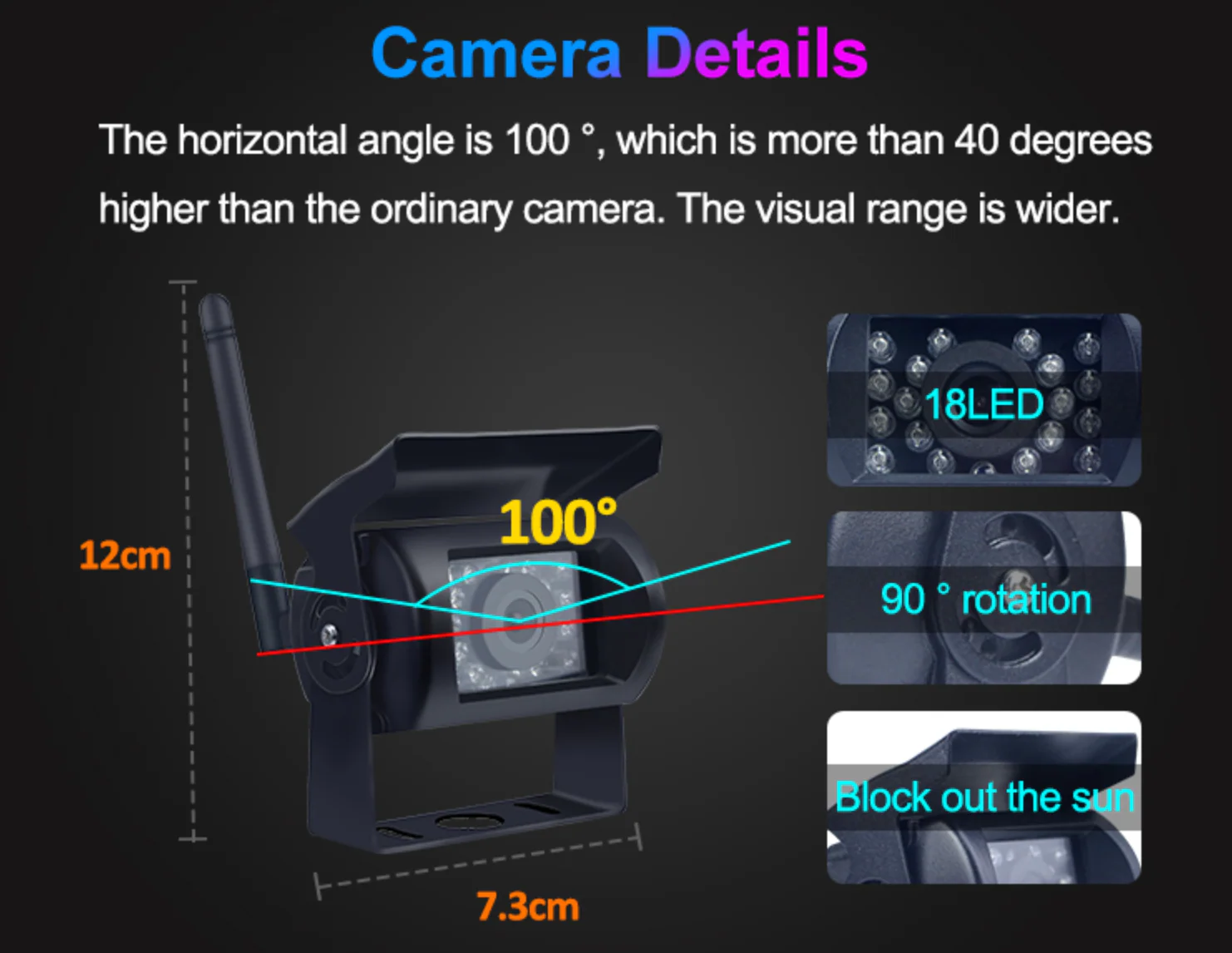

▪ Viewing angle: 120 °
▪ Voltage: 12V / 24V DC
▪ Operating temperature: -20 ° C to +70 ° C
▪ Housing material: Aluminum
▪ Material mounting bracket: Metal

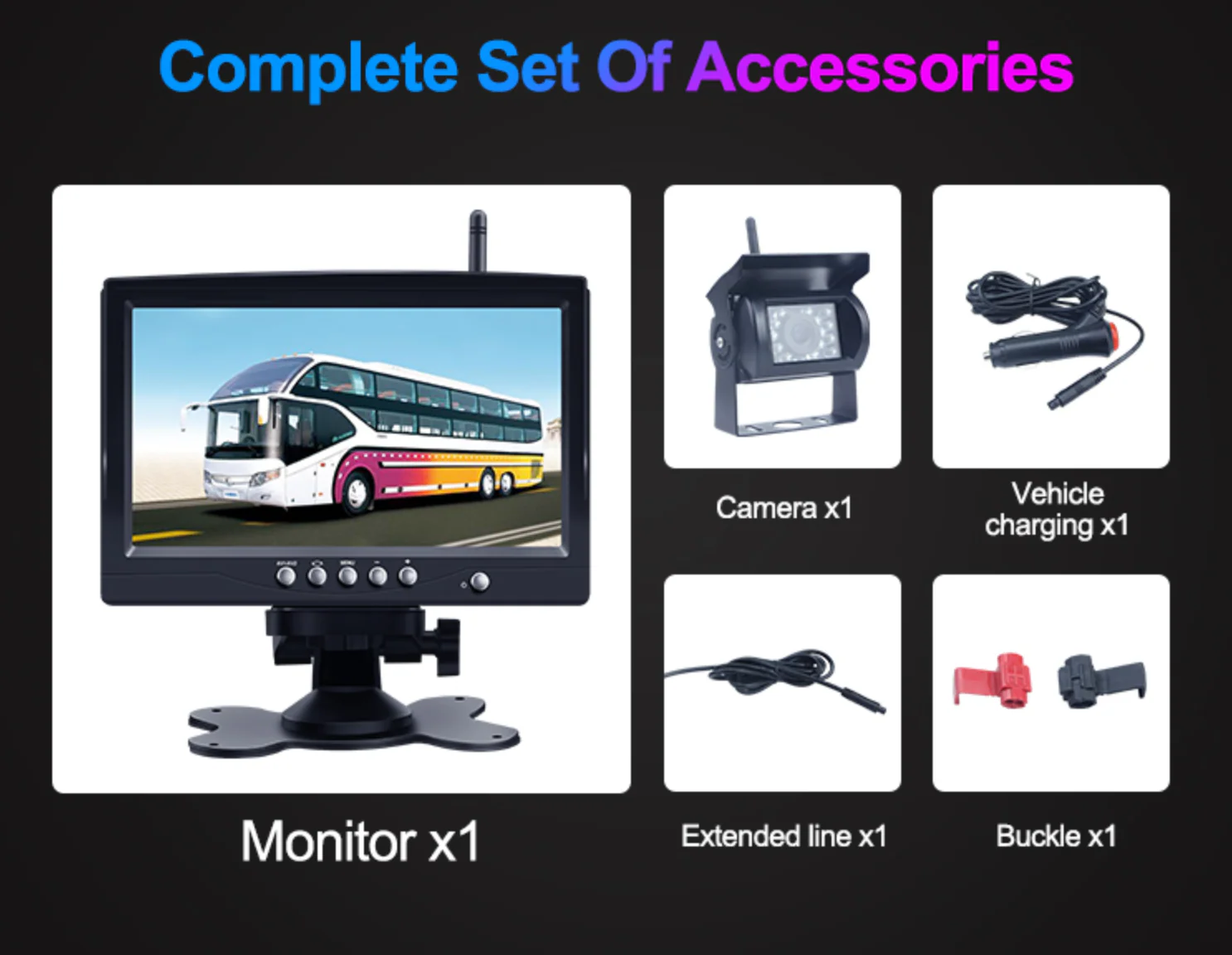

Package contents
1x Monitor (wireless)
1x Reversing camera (wireless)
2x Antenna
2x Power cable
1x Remote control
1x Mounting bracket
1x Manual
